Roll To Roll Flexo Printing Machine 380v Label Die Cutting 150m/min

    Buy cheap Roll To Roll Flexo Printing Machine 380v Label Die Cutting 150m/min from wholesalers

    Buy cheap Roll To Roll Flexo Printing Machine 380v Label Die Cutting 150m/min from wholesalers
    • Buy cheap Roll To Roll Flexo Printing Machine 380v Label Die Cutting 150m/min from wholesalers

    Roll To Roll Flexo Printing Machine 380v Label Die Cutting 150m/min

    Ask Lasest Price
    Brand Name : sunrise
    Model Number : SR-320-8C
    Certification : CE
    Price : 41000-51000
    Payment Terms : T/T
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    Roll To Roll Flexo Printing Machine 380v Label Die Cutting 150m/min

    Roll To Roll Flexo Printing Machine 380v China Label Die Cutting Machine Supplier


    Product Description

    1. unwinding unit
    • automatic loading/unloading by hydraulic


    • auto stop when paper roll is finished


    • corona treater


    2. Auto web guiding (dexing)

    • with pneumatic splicing table


    • the paper guide roller adopts high hardness anodized


    • ultrasonic sensor, system can correct when paper goes skewing.


    • precision:±0.12mm


    3. In/Out-feeding system
    • rubber rollers for feeding


    • servo motor


    4. Printing unit 8 units
    • drive system: servo motor


    • pneumatic for opening and closing anilox roller and printing roller


    • ceramic anilox roller. 1 pcs per printing unit, customized


    • printing roller. 1 pcs per printing unit, customized ( Steel material less than 130T, aluminum material more than 131T )


    • stainless steel ink box, single doctor blade.


    • adopts petal structure, the pressure is stable, and the printing cylinder can be changed fast


    • printing plate automatically cleaning function: printing roller keeps rotating for 1.5s to pass the ink to paper when machine is stopped each time, it can make plate clean.


    • anilox roller rotate itself function: anilox roller will rotate itself when machine is stopped, to avoid ink dry on face of anilox roller.

    • gear mode:cp1/8, material 20CrMnTi, long working life.


    5. Drying system

    • led uv


    6. Video camera


    7. one station die cutting


    8. cold hot foil


    9. turn bar


    10. chill roll and chiller


    11. Central rewinding unit

    • stop when paper is cut off


    12. Auto stopping function
    • pre-set printing meter, and machine will stop automatically


    13. Venison plate mounter


    14. Touch screen


    15. Mark sensor auto registration system, to save material


    16. One set of Magnetic


    Technical parameter


    Unwinding/rewinding diameter

    600mm

    Printing repeat181mm-600mm
    Max width330mm
    Max printing width320mm
    Material thickness30-300gsm paper, pet 12-60um,opp 18-60um
    Gear pitch1/8inch (3.175mm)
    Printing plate thickness1.7mm
    Double glue tap thickness0.38mm
    Printing precision±0.1mm
    Power supply380V 3PH 50Hz
    Machine speed0-180m/min
    Air compressor100PSI (0.6Mpa)
    Tension area5-100kg
    Rewinding motor4KW
    Printing servo motor1.8KW


    C. Configuration

    NameModelBrand
    Motion controllerInnovance
    Main touch screen15”INNOVANCE
    servo motor/drive1.8KWInnovance
    Unwinding tension controllerZXTEC
    Rewind motor4 KwINNOVANCE
    Servo driver1.8KwINNOVANCE
    PLCINNOVANCE
    air cylinderAIRTEC
    Web guidingKESAI
    Video cameraObserver 4000MKESAI
    Switch power supplyMeanwell - Taiwan
    Pneumatic componentsMeanwell - Taiwan
    BeltSaini - Ningbo
    Cameric anilox rollerShanghai brand
    All low-tension electricalCHINT / Schneider
    FanXuchi - Wenzhou
    Lubricating motorTaiwan
    Electrical proportional valveAIRTEC
    Linear guidesWeiyi - Lishui
    Roll To Roll Flexo Printing Machine 380v Label Die Cutting 150m/min
    full servo motor, full uv/led uv, auto register, printing and die cutting
    petal type printing unit, easy to change unilox roll and printing cylinder

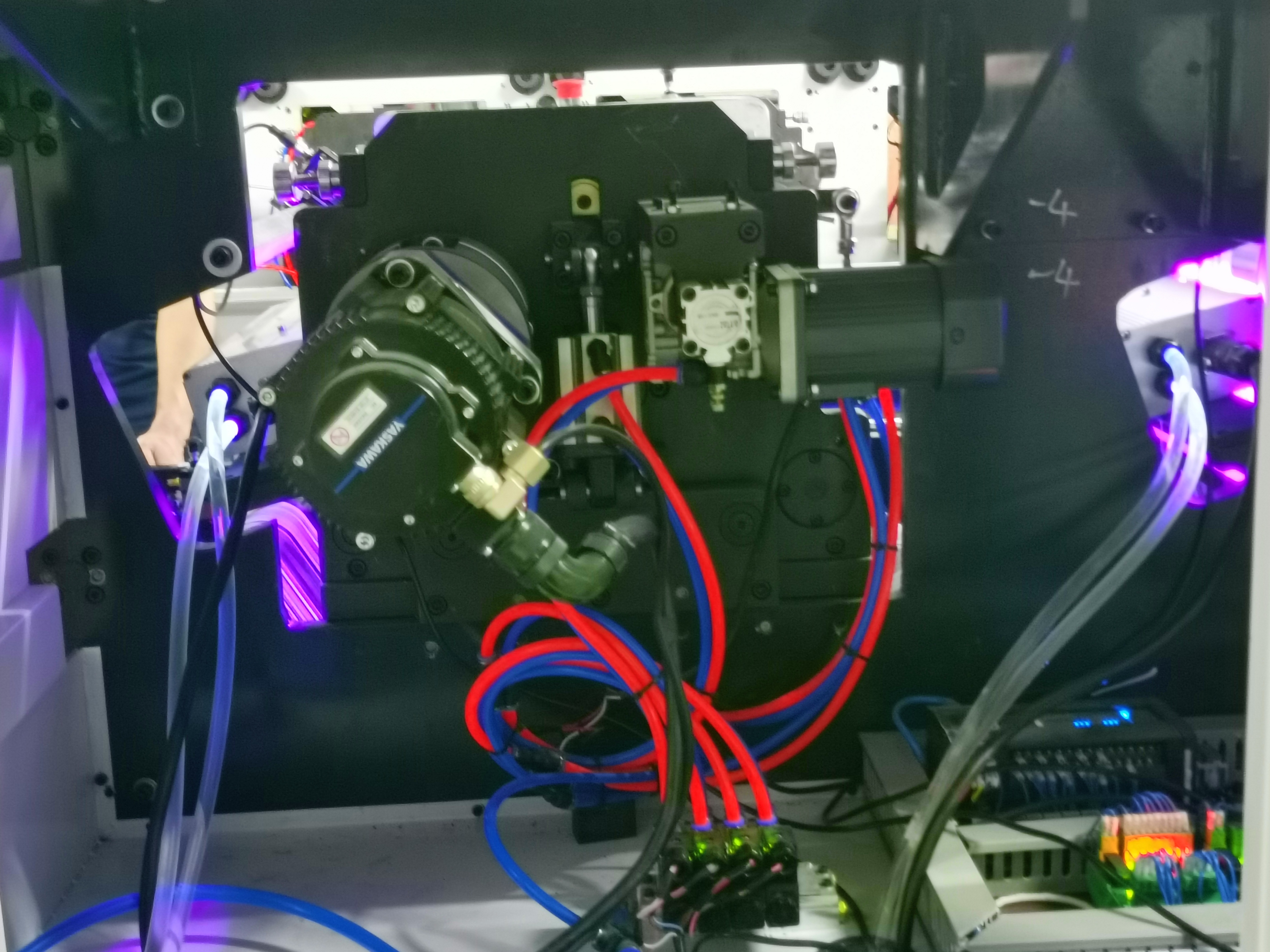

    full servo motor control(material pulling, die cutting ,each printing unit)
    uv/leduv drier, color sensor for auto register
    computer ,it can enlarge ,register can be more correct
    Packing & Delivery
    Roll To Roll Flexo Printing Machine 380v Label Die Cutting 150m/min
    Roll To Roll Flexo Printing Machine 380v Label Die Cutting 150m/min
    Company Profile
    Roll To Roll Flexo Printing Machine 380v Label Die Cutting 150m/min
    Roll To Roll Flexo Printing Machine 380v Label Die Cutting 150m/min

    Wenzhou Sunrise Macinery Co.,Ltd professionally research and manufacture label die cutting machine, label slitting machine and some related series products, we pay attention to talents and the technical innovation, insist on "technical innovationnational brand' as development strategy, to make company as the leader in after printing machinery line. Sincerity, quality,service is our operation principle, to be brave aggressive pragmatic efficient is our company spirit. We research and manufacture various of types of machines, welcome all old and new customers and friends to visit us!


    FAQ

    1. who are we?
    We are based in Zhejiang, China, start from 2013,sell to Domestic Market(60.00%),Mid East(12.00%),Eastern Asia(5.00%),South Asia(4.00%),Central America(3.00%),South America(3.00%),Africa(3.00%),Southeast Asia(3.00%),Oceania(3.00%),North America(2.00%),Eastern Europe(2.00%). There are total about 11-50 people in our office.

    2. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;

    3.what can you buy from us?
    Label Die Cutting Machine,Slitting Machine,Flexo Printing Machine,Laminating Machine,Rotary Label Die Cutting Machine

    4. why should you buy from us not from other suppliers?
    Wenzhou Sunrise Macinery Co.,Ltd professionally research and manufacture label die cutting machine, label slitting machine and some related series products, we pay attention to talents and the technical innovation, insist on "technical innovationnational

    5. what services can we provide?
    Accepted Delivery Terms: FOB,CFR,CIF,EXW;
    Accepted Payment Currency:USD,EUR,CNY;
    Accepted Payment Type: T/T,L/C;
    Language Spoken:English,Chinese.
