    Automatic Non Stop Label Slitting Machine 4 Shaft Turret Rewinding Machine

    Ask Lasest Price
    Brand Name : SUNRISE
    Model Number : SR-320
    Certification : CE
    Price : 35000-50000
    Supply Ability : 15SETS/MONTH
    Delivery Time : 30 DAYS
    • Product Details
    • Company Profile

    Automatic Non Stop Label Slitting Machine 4 Shaft Turret Rewinding Machine

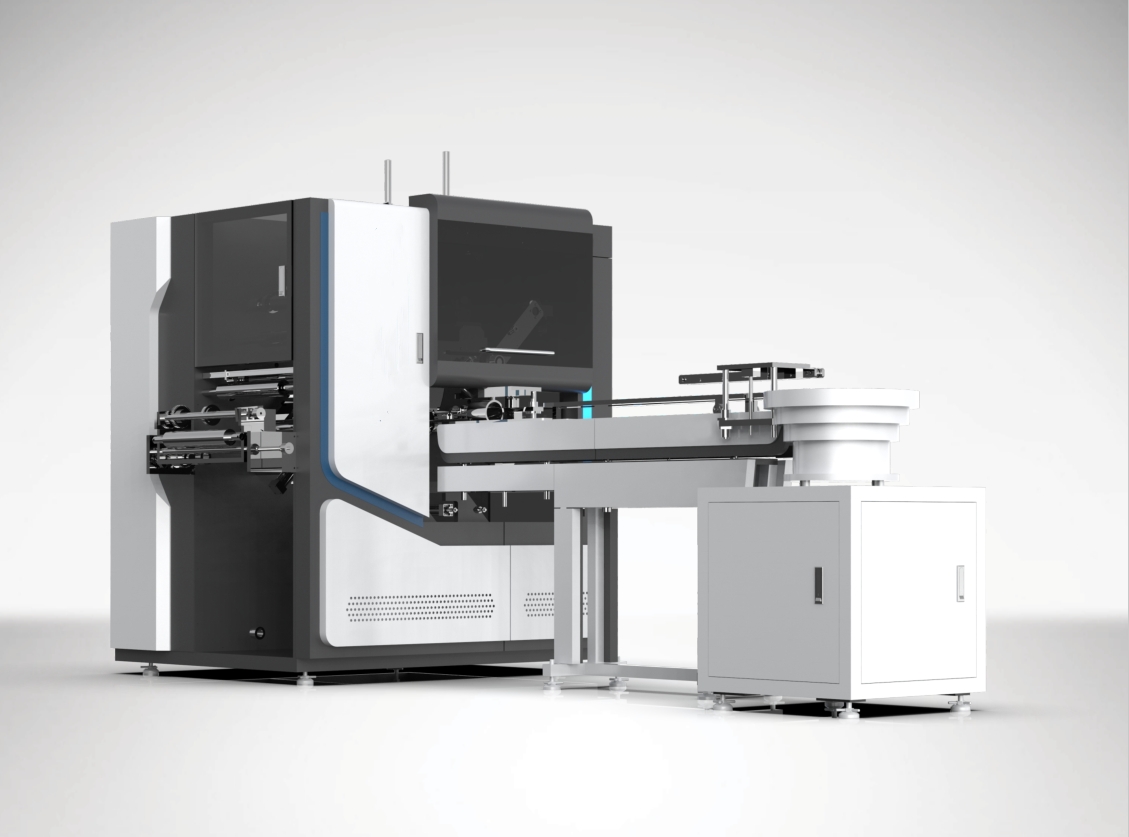

    SR-320 Fully automatic 4-shaft turret type non-stop rewinding machine


    Machine features:

    1. Fully automatic 4-shaft turret type non-stop rewinding machine, the rate of achieving paper success is up to 100%. And it ensures that the tension stability of equipment in the production stage regardless of jog, speed increase, speed reduction, emergency, to realize the best condition of printing machine.


    2. The turret type rewinding machine system adopts the chinese famous brand innovice, which provides intelligent production solutions. It adopts full servo closed-loop tension control and equips with a vibrating plate automatic paper-feeding tube mechanism, a discharge mechanism, to realize online non-stop rewinding.


    3. The rewinder can be connected to rotary die cutting, slitting machines, flexographic printing machines and other equipment. It is equipped with a 1-inch 1.5-inch 2-inch quick release air-expansion shaft. The rewinding machine does not require manual mechanical adjustment when changing the size of different reels, its system automatically adjusts the size of the reel to reduce the labor force for intelligent production.


    Specification:

    P/NOriginQtyRemark
    Control systemChinaInnovice
    EPC web guideChinaArise
    Low voltage electrical applianceFranceSchneider
    BearingJapanNSK
    TOUCH SCREENChinaFANYI
    Servo motorChinaAirtac
    Pneumatic elementTaiwan1”, 1.5”,2”,3”
    Model size350mm450mm570mm
    Max rewinding diameter350mm350 mm350mm
    Max width350mm450mm550mm
    Min rewinding width40mm60mm100mm
    Total power10KW14KW16KW
    Power supply3PH+N+PE3PH+N+PE3PH+N+PE
    Machine dimension1.5X3X1.7m1.5X3.2X1.7m1.5X3.6X1.7m
    Machine weight2.2T2.5T2.8T
    Air pressure0.8MPA0.8MPA0.8MPA

    Machine speed: Max 120m/min when rewinding shaft is 25-38mm

    Max 150m/min when rewinding shaft is 50-76mm


    it can connect with slitting machine, rotary die cutting machine,and film packing machine.


    with paper core loader, auto feeder


    paper core auto feeder


    4 shafts, non stop rewind


    auto labeling
