Advantage (compare with Guillotine cutting machine)
- Material is paper roll, waste paper is much less
- Automatic cutting machine, capacity depends on machine speed not
labor
- Operation is much easier than guillotine cutting machine
- Precision is controlled by servo motor. Guillotine machine
precision depends on labor operation
Usage:

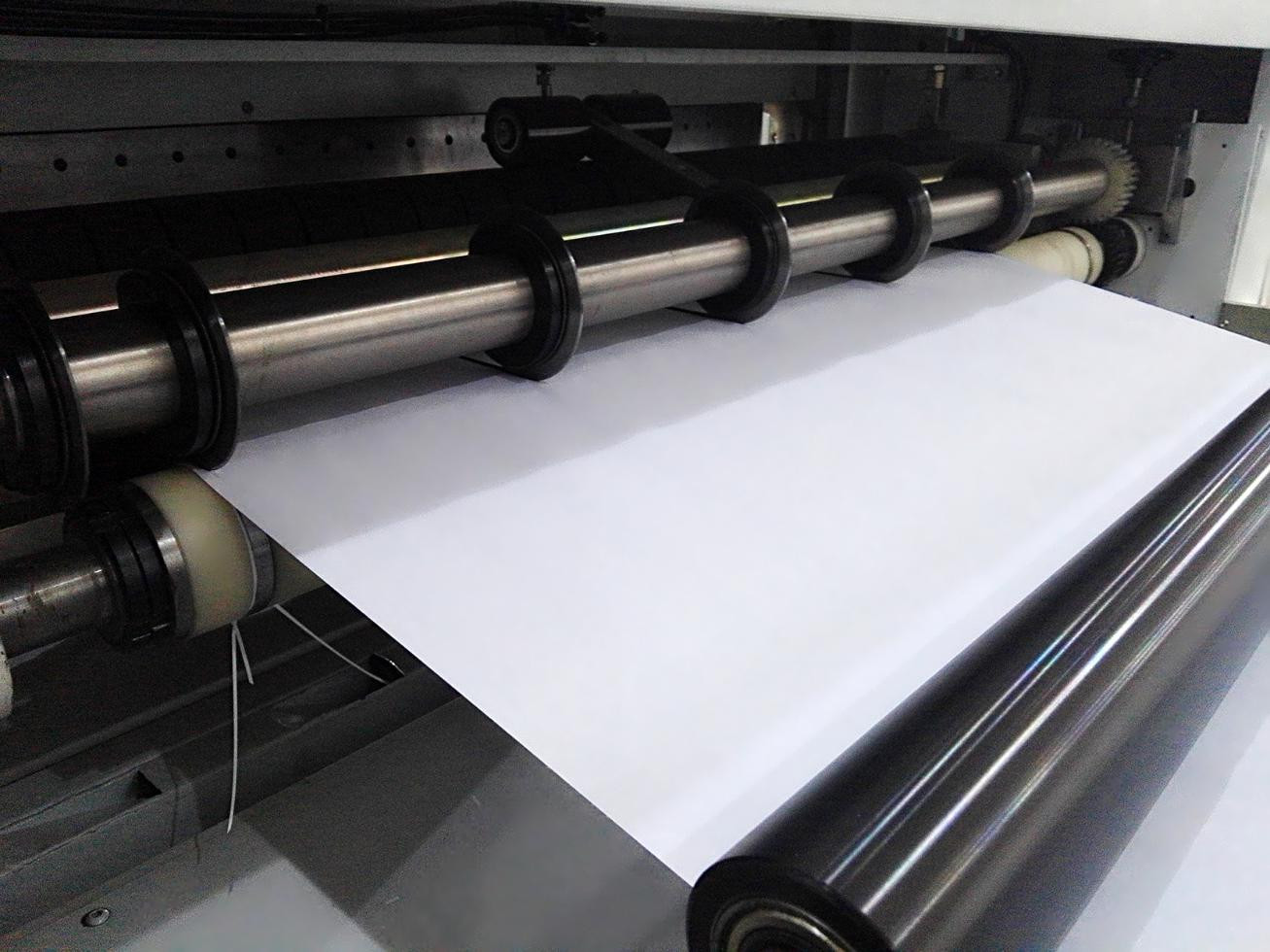

The SR-1100D Sheeter Machine is suitable to convert jumbo rolls to
sheets,specially cutting and slitting 40-450 gsm cardboard
paper,craft paper,coated paper,laminated craft paper,self adhesive
paper.It is suitable for A4 copy paper,food packaging
business,printing industry.
Characteristic:
- The machine adopts servo motor,frequency controlling speed.PLC
Control System,including automatic tension control,automatic
counting,setting cutting size,automatic stop by setting
time&number and other many functions.
- Unwinding jumbo roll part use automatic air shaft
- Unwinding jumbo roll part adopts EPC system,automatic correcting
web material position and keeping high cutting precision.
- Machine shelf adopt casting steel,guillotine knife use heavy
casting structure,traction rollers use static balance processing
aluminum rollers.
- Automatic stacking&trimming finished sheets,using two stage
motors to convey sheets to frontside.The convey can go up and down
automatically.
Technical Parameters:
| Model | SR-1100D Convey frontside |
| The max jumbo roll diameter | φ1400mm |
| The max jumbo roll width | 1100mm |
| Cutting size | Multiple size, length:20-1000mm, width:10-1100mm |
| Speed | 10-150 cutting times/min |
| Capacity | Depend on paper size |
| Material GSM | 30-350gsm |
| Precision | ±0.2mm |
| Feeding Roll | One roll |
| Power | 7KW |
| Voltage | 380V/50HZ |
| Weight | 4000kg |
| Dimension(L×W×H) | 5000×1900×1400 |
Wenzhou Sunrise Macinery Co.,Ltd professionally research and
manufacture label die cutting machine, label slitting machine and
some related series products, we pay attention to talents and the
technical innovation, insist on "technical innovationnational
brand' as development strategy, to make company as the leader in
after printing machinery line. Sincerity, quality,service is our
operation principle, to be brave aggressive pragmatic efficient is
our company spirit. We research and manufacture various of types of
machines, welcome all old and new customers and friends to visit
us!
1. who are we?
We are based in Zhejiang, China, start from 2013,sell to Domestic
Market(60.00%),Mid East(12.00%),Eastern Asia(5.00%),South
Asia(4.00%),Central America(3.00%),South
America(3.00%),Africa(3.00%),Southeast
Asia(3.00%),Oceania(3.00%),North America(2.00%),Eastern
Europe(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Label Die Cutting Machine,Slitting Machine,Flexo Printing
Machine,Laminating Machine,Rotary Label Die Cutting Machine
4. why should you buy from us not from other suppliers?
Wenzhou Sunrise Macinery Co.,Ltd professionally research and
manufacture label die cutting machine, label slitting machine and
some related series products, we pay attention to talents and the
technical innovation, insist on "technical innovationnational
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
